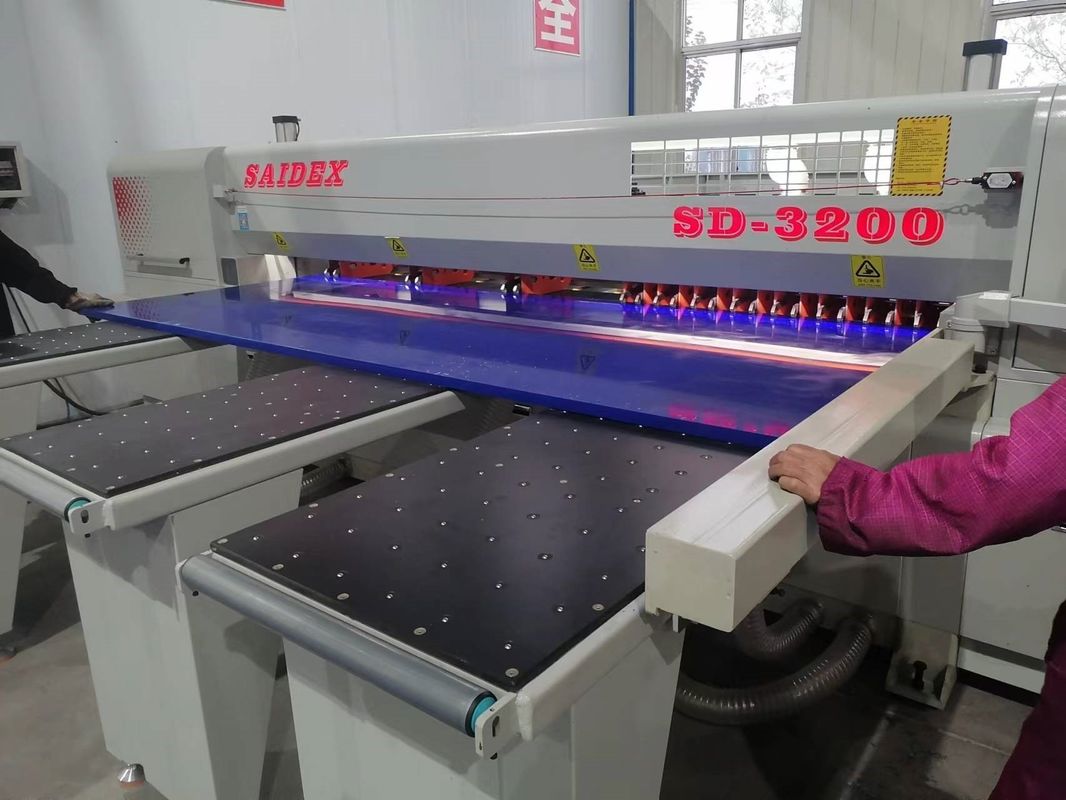

2600 Acrylic Automatic Saw Cutting Electric Machine

2600 Acrylic Automatic Saw Cutting Electric Machine

whatsapp: 008613392020165
Email: sales012@xsaide.com
Tel:+86-769-8180 8008

High precision 0.01mm SD1300 SD2600 table saw machine for woodworking acrylic cutting

SAMPLES FREE!   SAMPLES FREE!   SAMPLES FREE!

Efficient and fast processing ability is commiteed to improving the product production rate.

Products Features:

1. Reliable Japanese Panasonic servo motor and control device.

2. High quality panasonic controller PLC.

3. Acrylic special purpose clamp, convenient for samll materails.

4. Electronic ruler from German, precision compensation, resolution 0.01mm.

5. Easy transport the materials, steel ball type air floating table, avoid the surface scratches.

6. Simplified, easy to learn control systems are dedicated to PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC

7. The guide rail of saw seat adopts imported brand, the sawing straighness < 0.06mm, with high precision and heavy load, panasonic servo control is specially used for PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .

1. HD Touch screen control system:

  1) Easy operation, safety & reliable.

  2) Which has complete operating hints and troubleshooting guide functions.

  3) It’s cutting plan can edit manually; can simulate or execute cutting plans.

  4) Can compatible with bar code manage software or factory automation software.

  5) Machine can receive high precesion about 0.01mm.

2. Japan Panasonic PLC control system.

3. Add side aligning system:

Fix cutting panel width side, control panels won’t move or shake when sawing,

ensure sawing precision. Pressure can be adjusted according to difference thickness,

weight and material, ensure the precision of sawing dimension.

4. Saw carrier

1) Driven by imported high-precision rack & pinion, stable movement, ensure cutting precision.

2). Saw carrier pull back position automatically controlled base on next cutting length,

Which reduce unused moving time and greatly improve efficiency.

3). Max cutting speed reach to 60m/min.

5. Loading system: Air floating loading table,avoiding board scratching and assuring

smoother board movement, suit for heavy and big type PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .

6. Position system:

Imported CNC automatic positioning ruler & slid rail, effectively avoid the artificial

operation error, and greatly increase cutting accuracy. Machine can receive high precesion about 0.01mm.

7. Automatic feed system

  1) Adopt 7pcs pneumatic holding gripers, can gripe the panel steadily, highly reduce

labor intensity, and greatly improve production efficiency, Min holding panel size 45mm.

  2) Drive by Japan Panasonic Servomotor & German Electronic ruler

1. After-sell service:

    Engineers available to service machines in overseas.
    You can also have training in our factory for free.
    24 hours online service every day, free technical support for whole machine life.

2. Technical support:

    Machine has been adjusted and all parts will be tested before shipping by our QC staffs.
    We will provide the consumable parts whole machine life when you need replacement.

3. Warranty:

  Wholemachine with one year guaranty for the machine main parts (excluding the consumables), life time maintenance free of charge.
